CAT 3054 engine Models
Model #1 Mechanical Fuel Injection Engine
This is a CAT 3054C Engine with Mechanical fuel Injection

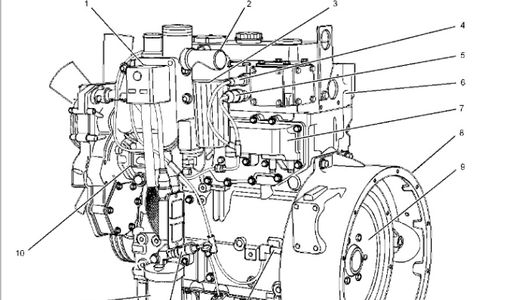

Model #2 Engine Diagram
This is CAT 3054C engine with side mount turbo
.jpg/:/cr=t:13.24%25,l:0%25,w:100%25,h:73.53%25/rs=w:600,h:300,cg:true)
Model #2 Actual Engine
This is actual picture of Cat 3054C engine with side mount turbo .
.JPG/:/cr=t:0%25,l:0%25,w:100%25,h:56.18%25/rs=w:1240,h:620,cg:true)
Model #3 Actual Engine
This is a CAT 3054C engine with top Mount Turbo
Model #4 CAT 3054 engine Electronic Fuel Injection: Engine Diagram
This is actual picture of CAT 3054C engine model with Top mount turbo .
Model #4 Electronic Fuel Injection: Actual Engine
This CAT 3054C Engine model has ECU and common rail Fuel Injection
Model #5 Cat C4.4 Acert Engine
This engine is also refereed to as CAT 3054C engine sometimes. This Engine has ECU, side mount turbo and three filters. This Engine requires After Treatment
Model #6 CAT 3054C Engine non Turbo with Stressed Block
This Cat 3054C engine has no turbocharger and has a stress block, where the starter goes through engine block.
.JPG/:/cr=t:0.11%25,l:0%25,w:100%25,h:56.18%25/rs=w:600,h:300,cg:true)
Model #7 CAT 3054C engine Stressed Block With Turbocharger
This Cat 3054C engine has turbocharger and has a stress block.
Model #8 Cat 3054 Engine Older Version
This cat 3054 engine has Manifold with heating element and three bolt pattern.
Model #8 Cat 3054 Engine Older Engine other side
Other side of Model #8 cat 3054c
